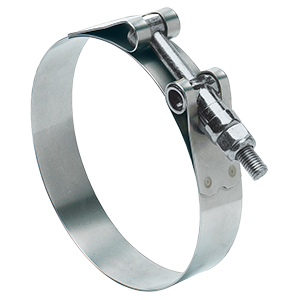

300100300-TRI - T BOLT STANDARD 3/4" BAND SIZE 300

• Heavy duty T-Bolt 30010 clamps provide uniform sealing pressure for a positive, reliable seal

• Specifically designed for use in high vibration and large diameter applications

• The most widely used t-bolt design

• Typical applications include truck air intake systems, cold side charge air systems, off-road equipment and industrial machinery

Specifications:

T-Bolt: 1/4" Plated Carbon Steel

Hex Nut: 7/16" Plated Carbon Steel, Nylon Insert

Band: 3/4"

Bridge: 3/4"

Trunnion: Plated Carbon Steel

Installation Torque: 75 in-lbs (8.5 Nm)

Size: 300

Min (in.): 3.00

Max (in.): 3.31
