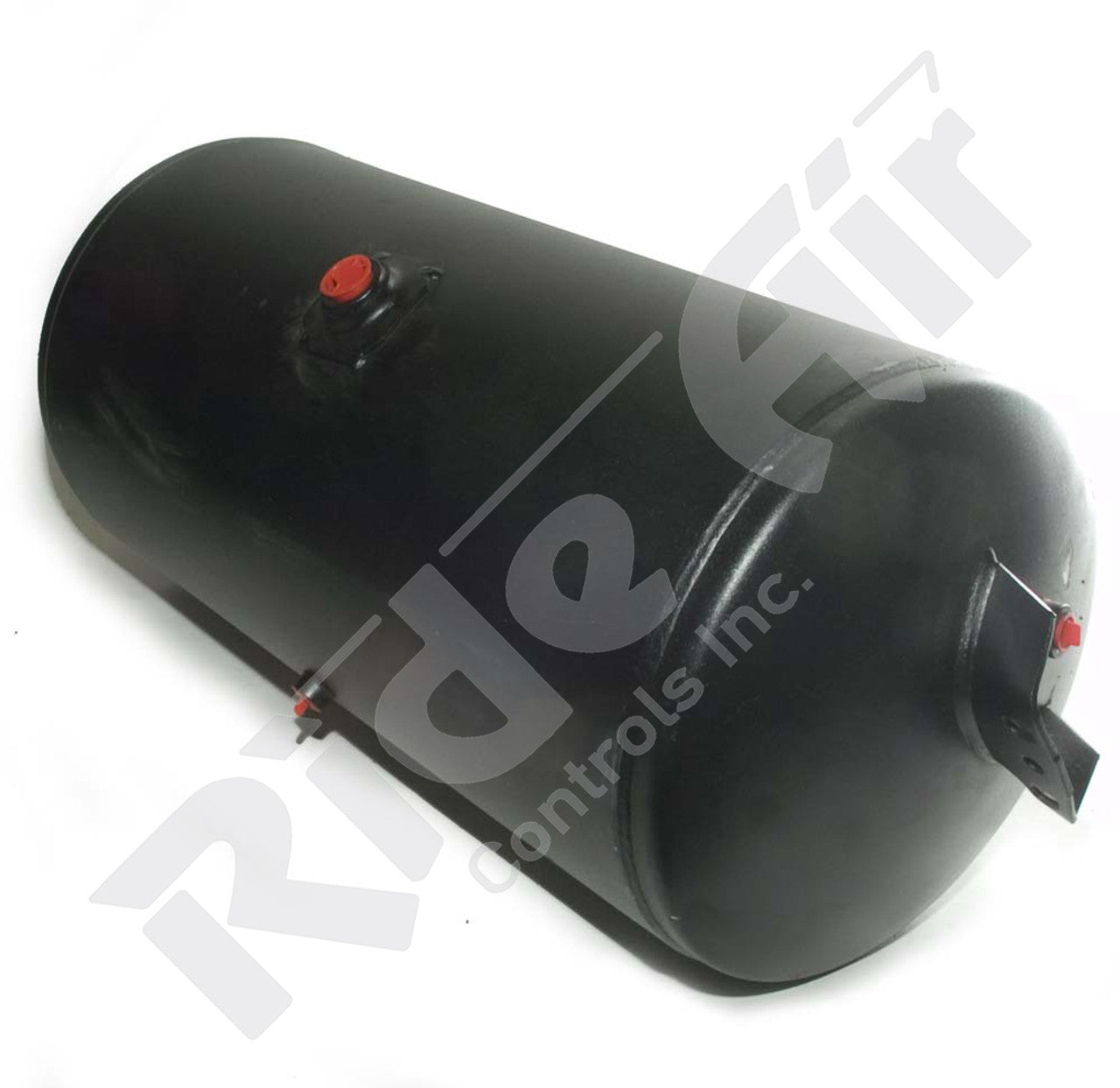

RQ95119 - AIR TANK 9.5 X 27.5" 2 PORTS @ 0 DEG INVERTED BRACKETS

• Every tank is pressure tested for leaks, structurally sound, and date-coded for traceability

• Unique automated painting process ensures corrosion-resistant protection inside and out

• Continuous weld seams and resistance-welded ports provide strength and leak prevention

• Threads meet "L Standards," and our air tanks meet SAE J10 and FMVSS DOT 121 requirements for Heavy Duty Air Brake systems

• Length measured between mounting hole centers

Specifications:

Diameter: 9.5"

Length: 27.5"

Max working pressure: 150 psi

Mounting bracket holes: 7/16" diameter

Ports: 2

Bracket Orientation: 0° Inverted
